Series 999
 Jumpers
 Male or Female


Series 999 jumpers are available With insulators in various colors for easier identification Male version will fit standard receptacles; female version with open or closed body fits square pin headers


Platings Sleeve Clip Pin Ordering information Replace xx with required
plating code
Applies to jumpers for square
pin headers only
Option: Wire dia 0.50 mm
instead of 0.56 mm.
Change second group of figu
res into 51.
Example: 999-11-113-10 becomes  999-51-113-10.
 (Ap
plies only to jumpers for receptacle connectors
without insulator)
19
39
90


0.25Ám    Au
0.75Ám    Au
5Ám     Sn Pb
Platings: 0.25 mm Au mm Sn Pb 999-11-110-10 999-11-110-90 999-11-210-10 999-11-210-90 999-11-210-11 999-11-210-9 Jumpers for receptacle
connec
tors. B = 2.54 mm Insulator:
 none black red
Platings: 0.25 mm Au mm Sn Pb 999-11-112-10 999-11-112-90 999-11-220-10 999-11-220-90 999-11-220-11 999-11-220-91 Jumpers for receptacle
 connec
tors. B = 5.08 mm Insulator: none black red

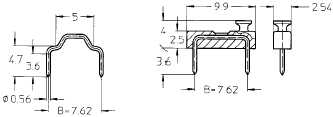

Platings: 0.25 mm Au mm Sn Pb 999-11-113-10 999-11-113-90 999-11-230-10 999-11-230-90 999-11-230-11 999-11-230-91 Jumpers for receptacle
connec-
tors. B = 7.62 mm Insulator: none black red

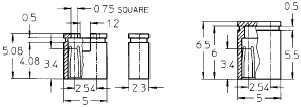

Body style Open body Closed body 999-xx-310-00 999-xx-210-00 999-xx-310-02 999-xx-210-02 999-xx-310-06 999-xx-210-06 Female jumpers for 2.54 mm square pin headers:
black
red blue
