Series 510 / 511 / 515

Pin grid array sockets
Solder Tail

Pin grid array sockets, standard solder version PGA sockets are high density connecting devices equipped with machined precision contacts with soft contact clips assuring low insertion/withdrawal forces. Over 200 standard pinouts are available; inquiries for custom varieties are welcome Insertion characteristics: 6-finger low, very low or ultra low force

Platings Sleeve Clip Pin Ordering information Replace xxx-xx-xxx with the number of poles, body size
and lay-
out numbers as indicated on pages 88 to 92.
For example, a 1212
pin configuration with window and 108 standard soldering contacts as shown on page 88 becomes:
510-93-108-12-051-001
Machined epoxy insulator for
extra sturdiness and low profile appli
cations; solder
and wire-wrap  terminations only:
please consult for
availability and specifications
13
91
93
97
99
0.25Ám    Au
5Ám     Sn
5Ám     Sn
5Ám     Sn
5Ám     Sn
0.75Ám    Au
0.25Ám    Au
0.75Ám    Au
goldflash
5Ám     Sn

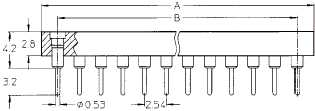

510-13-xxx-xx-xxx-001 510-91-xxx-xx-xxx-001 510-93-xxx-xx-xxx-001 510-97-xxx-xx-xxx-001 510-99-xxx-xx-xxx-001 510-93Bxxx-xx-xxx-001 510-97Bxxx-xx-xxx-001 510-93Cxxx-xx-xxx-001 510-97Cxxx-xx-xxx-001 PGA sockets with standard
solder
tails, length 3.2 mm Option: PGA sockets with optional stand- offs, please consult for
availability
Option: PGA sockets with
standard solder
tail length 3.2 mm and very low force (B) or ultra low force
(C) clips
510-13-xxx-xx-xxx-001 510-91-xxx-xx-xxx-001 510-93-xxx-xx-xxx-001 510-97-xxx-xx-xxx-001 510-99-xxx-xx-xxx-001 PGA sockets with standard
solder
tails, length 3.2 mm, four
 optional
self clinching snap-in pins,
and four
optional stand-offs. Add 70 to fourth group of figures in standard reference number,
e.g.
510-93-108-12-051-001
becomes:
510-93-108-82-051-001
511-13-xxx-xx-xxx-001 511-91-xxx-xx-xxx-001 511-93-xxx-xx-xxx-001 511-97-xxx-xx-xxx-001 511-99-xxx-xx-xxx-001 PGA sockets with standard
solder
tails, length 4.2 mm
515-13-xxx-xx-xxx-001 515-91-xxx-xx-xxx-001 515-93-xxx-xx-xxx-001 515-97-xxx-xx-xxx-001 515-99-xxx-xx-xxx-001 PGA sockets with low profile contacts and solder tails of
2.8 mm
length PGA sockets with ultra low
profile
contacts please consult
