Series 517 / 614

Pin grid array sockets and carrier
with interstitial contact rows
Solder Tail

Pin grid array sockets with interstitial contact rows These sockets of a very compact design have interstitial contact rows with a staggered contact arrangement and row distances of 1.27 mm. Their contact density is nearly double as compared to PGAs based on a standard 2.54 mm grid pattern They are equipped with machined precision contacts with extra- soft contact clips assuring low insertion/withdrawal forces Insertion characteristics: 6-finger very low


Platings Sleeve Clip Pin Ordering information Replace xxx-xx-xxx with number of poles, body size
and
layout numbers as indicated on pages 91 and 92.
 For example,
a 1818 pin configuration with 1717 interstitial rows
 and
standard soldering tails becomes:
517-93-391-18-101111
Options: For other sizes and layouts please consult
91
93
97
5m     Sn
5m     Sn
5m     Sn
0.25m    Au
0.75m    Au
goldflash

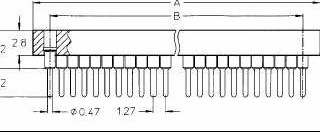

517-91-xxx-xx-xxx-111 517-93-xxx-xx-xxx-111 517-97-xxx-xx-xxx-111 PGA sockets with
interstitial
rows
and standard solder
tails,
length
3.2 mm

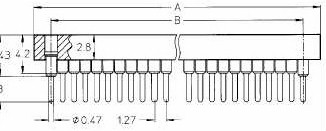

517-91-xxx-xx-xxx-111 517-93-xxx-xx-xxx-111 517-97-xxx-xx-xxx-111 Interstitial PGA socket with standard solder tails and 4
ele
vating contacts located
at the
corners for better
soldering and
cleaning Add 50 to the fourth group
 of
figures in standard
reference
number, e.g. 517-93-391-18-101111
 becomes
517-93-391-68-101111

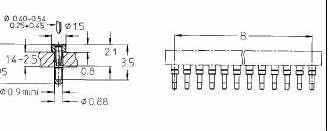

614-91-xxx-xx-xxx-144 614-93-xxx-xx-xxx-144 614-97-xxx-xx-xxx-144 PGA carrier socket with
 dispos
able plastic body
and carrier
pins.
Low profile ultra thin
contacts  are
plugged-on Solder terminations

0.88 mm
total length of
contact 3.9 mm
Requires  min. 0.9 mm
holes in
PCB
