Series 612 / 614

Pin grid array sockets
Carrier types

Pin grid array sockets, carrier types PGA carrier sockets are high density connecting devices having a disposable plastic body equipped with carrier pins. Machined precision contacts with soft contact clips assuring low insertion/withdrawal forces are plugged-on. Over 200 standard pinouts are available; inquiries for custom varieties are welcome Insertion characteristics: 6 finger low force or 3 finger low force for part number termination 012


Platings Sleeve Clip Ordering information Replace xxx-xx-xxx with the number of poles, body
size and
layout numbers as indicated on pages
 88 to 92.
 For example,
a 1212 pin configuration with window
and 108 standard
soldering contacts
612-93-108-12-051-001.
13
91
93
97
99
0.25m    Au
5m     Sn Pb
5m     Sn Pb
5m     Sn Pb
5m     Sn Pb
0.75m   Au
0.25m    Au
0.75m    Au
Goldflash
5m     Sn pb

612-13-xxx-xx-xxx-101 612-91-xxx-xx-xxx-101 612-93-xxx-xx-xxx-101 612-97-xxx-xx-xxx-101 612-99-xxx-xx-xxx-101 PGA carrier sockets with
dispos
able plastic body
and carrier pins.
Standard contacts are
plugged-
on Solder
terminations

0.53 mm,
length 3.2 mm
614-13-xxx-xx-xxx-101 614-91-xxx-xx-xxx-101 614-93-xxx-xx-xxx-101 614-97-xxx-xx-xxx-101 614-99-xxx-xx-xxx-101 PGA carrier sockets with
 dispos
able plastic body
 and carrier pins.

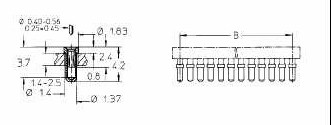

Low profile contacts are
plugged-
on Solder
terminations
1.37 mm,
total length of
contact
4.2 mm
Requires  1.4 mm
holes in PC
614-13-xxx-xx-xxx-112 614-91-xxx-xx-xxx-112 614-93-xxx-xx-xxx-112 614-97-xxx-xx-xxx-112 614-99-xxx-xx-xxx-112 PGA carrier sockets with
dispos-
able plastic body and
carrier
pins.
Low profile ultra thin
contacts
are
plugged-on Solder terminations

0.98 mm,
total length of contact
3.5 mm
Requires  1 mm
holes in PCB
